36.796,00 DKK 45.995,00 DKKPrisinterval: 36.796,00 DKK til 45.995,00 DKK exkl. moms.
4.100,00 DKK exkl. moms.
Välj variant
Frakt
Frakt beräknas i kassan
SENC 150 24.0 625 Diff 5 C001 13.0 4.00 3AS09 63 DK 5.0 45 1

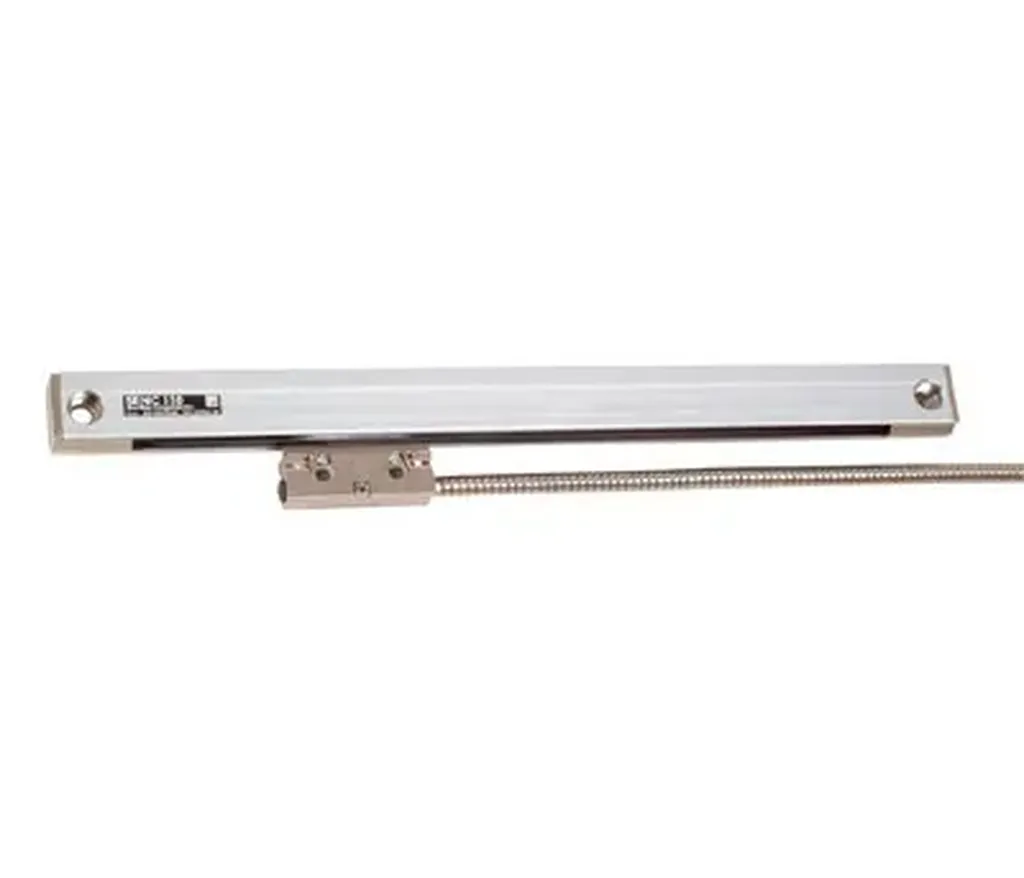

Incremental sealed linear encoder with small cross section
Measuring length: 625 mm, 654.05 mm (max), 24.0 inch, 25.75 inch (max)
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End block + mounting spar
Output signal: Differential TTL output
Resolution: 5 µm at 4-fold evaluation
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: D-sub connector, metal housing, 2-row, with metal armor and locking screws, 9-pin male
Cable type: PVC Ø 5.0 mm with armor Ø 8.25 mm
Cable length: 4.00 m, 13.0 foot
Company identification: Acu-Rite
90314990
Betalningsalternativ
Producent
SENC 150 24.0 625 Diff 5 C001 13.0 4.00 3AS09 63 DK 5.0 45 1
Incremental sealed linear encoder with small cross section
Measuring length: 625 mm, 654.05 mm (max), 24.0 inch, 25.75 inch (max)
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End block + mounting spar
Output signal: Differential TTL output
Resolution: 5 µm at 4-fold evaluation
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: D-sub connector, metal housing, 2-row, with metal armor and locking screws, 9-pin male
Cable type: PVC Ø 5.0 mm with armor Ø 8.25 mm
Cable length: 4.00 m, 13.0 foot
Company identification: Acu-Rite
Teknisk information
5.150,00 DKK exkl. moms.
Kompatibel med:
12.425,00 DKK exkl. moms.
Discontinued Gear wheel encoder SIZAG 2 6FX2001-8BA03 and 6FX2001-8AA03 both scanning head's with 1 V sine module M=0.3 for groove, cable 0.5 m. Sucessor type 100% new replacement: NORDICsensor_8BA03
