ACU-RITE Linjärt mätsystem – Tillbehör & reservdel (680116-08)

AE LB 383C 40.000 CD 0MS14 .. 0.00 ~1Vpp 2F 01 Scanning unit for incremental sealed LB linear encoder Output signal: 1Vpp Reference mark: distance-coded Grating period: 40.000 µm Power supply: 5V+-5% Electrical connection: Flange socket, male, 14-pin

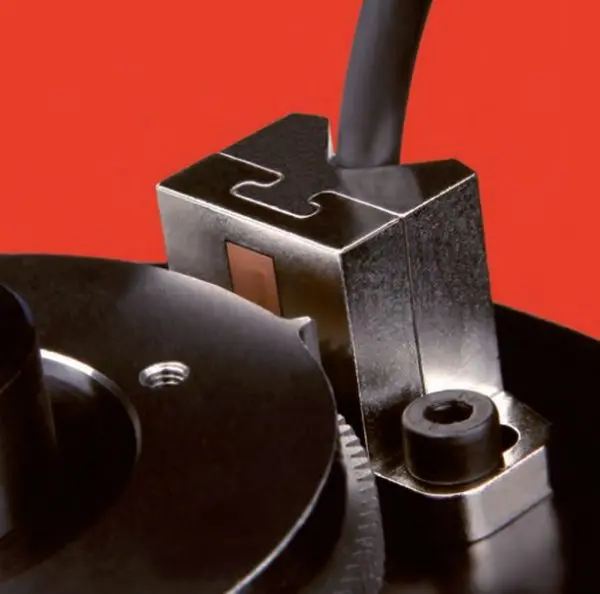

NORDICsensor programmet tilbyder 100% kompatible encodere, som erstatning for: Leonard+Bauer GEL-Serien.

Kompatibel med:

• Lenord+Bauer - GEL2444KZPG3K150

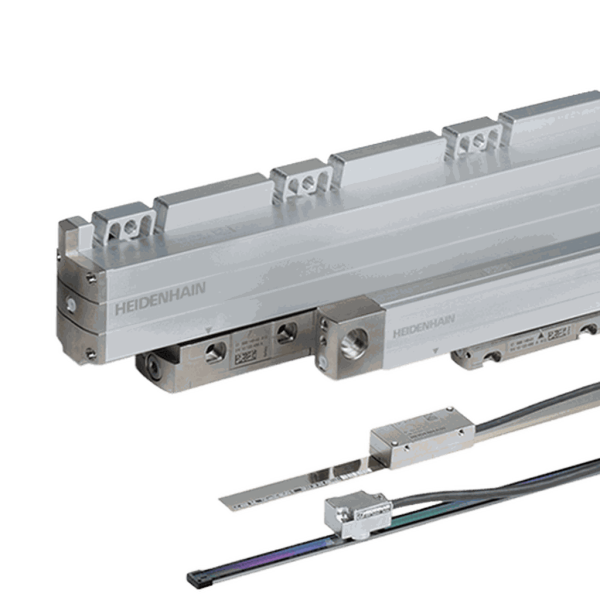

SENC 150 24.0 625 Diff 5 C001 13.0 4.00 3AS09 63 DK 5.0 45 1 Incremental sealed linear encoder with small cross section Measuring length: 625 mm, 654.05 mm (max), 24.0 inch, 25.75 inch (max) Accuracy grade: ± 5.0 µm Grating period: 20.000 µm Fastening type: End block + mounting spar Output signal: Differential TTL output Resolution: 5 µm at 4-fold evaluation Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period Power supply: 5V+-5% Electrical connection: D-sub connector, metal housing, 2-row, with metal armor and locking screws, 9-pin male Cable type: PVC Ø 5.0 mm with armor Ø 8.25 mm Cable length: 4.00 m, 13.0 foot Company identification: Acu-Rite

NORDICsensor programmet tilbyder 100% kompatible encodere, som erstatning for: Siemens Sizag serien, Siemens Simag serien og Fanuc-serien), samt Leonard+Bauer GEL-Serien.
