36.796,00 DKK 45.995,00 DKKPrisinterval: 36.796,00 DKK til 45.995,00 DKK exkl. moms.
36.796,00 DKK 45.995,00 DKKPrisinterval: 36.796,00 DKK til 45.995,00 DKK exkl. moms.
Välj variant
Frakt
Frakt beräknas i kassan

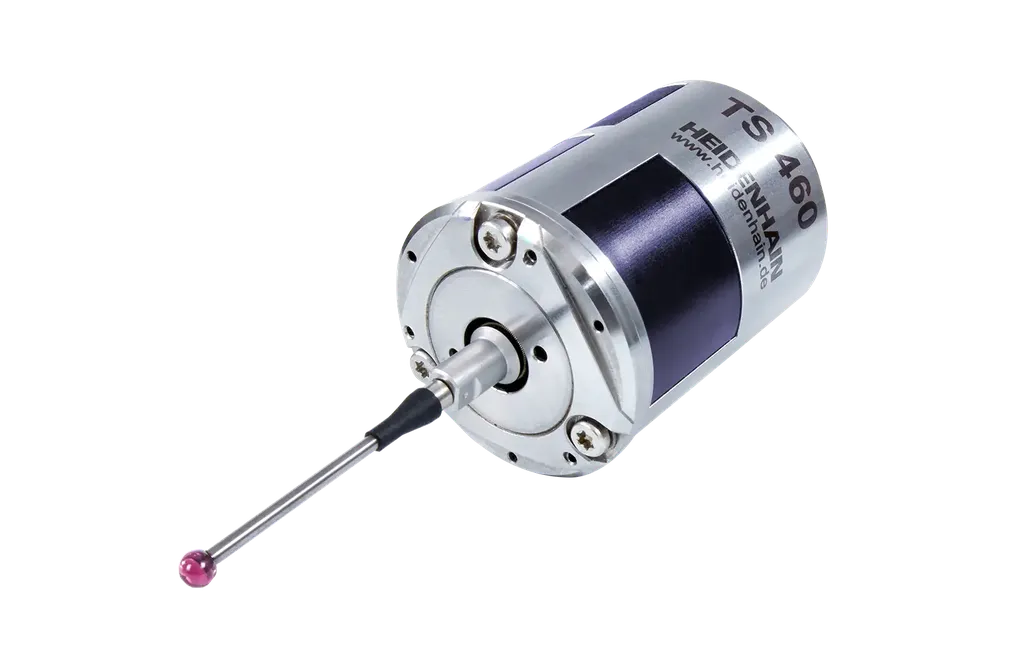

TS 460 S88 T404 AR/I 0 RF-EN/IR CP
Switching 3D-touch probe for workpiece measurement
Output signal: Radio/infrared transmission with EnDat support
Direction of beam in degrees: 0
Geometry of the stylus: L=40 mm, ball Ø 4 mm, shaft Ø 2 mm, with rated break point
Tool holder: JIS B 6339, BT 40, M16
Type of activation: Radio / Infrared activation
Collision protection: Collision protection
Company identification: HEIDENHAIN
90314990
Betalningsalternativ
Producent
TS 460 S88 T404 AR/I 0 RF-EN/IR CP
Switching 3D-touch probe for workpiece measurement
Output signal: Radio/infrared transmission with EnDat support
Direction of beam in degrees: 0
Geometry of the stylus: L=40 mm, ball Ø 4 mm, shaft Ø 2 mm, with rated break point
Tool holder: JIS B 6339, BT 40, M16
Type of activation: Radio / Infrared activation
Collision protection: Collision protection
Company identification: HEIDENHAIN
| Vikt | 3916 g |
|---|---|
| Kon | BT40 |
Teknisk information
Spare parts kit Stift (Brækstift) Replacement Kit for Tool Touch Probes TT Connection pin with rated break point and 2pcs. Mounting screws M3x5 / Torx T10, with locking glue.
Kompatibel med:
337,00 DKK exkl. moms.

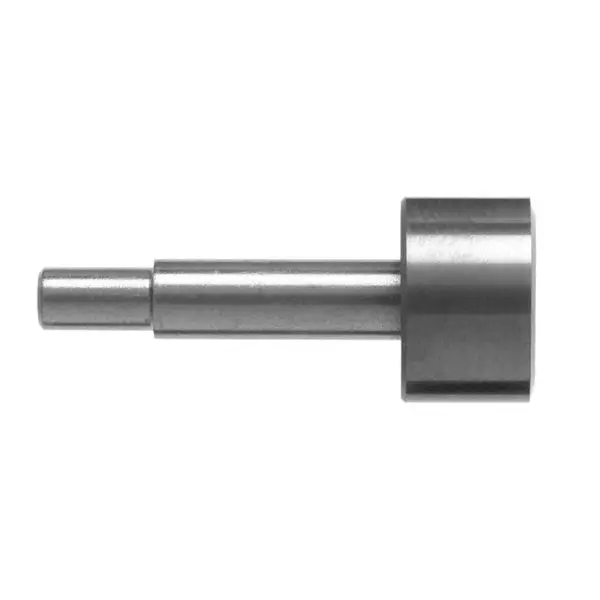

Tool datum disc Ø12.7 mm, tungsten carbide, L 23 mm Tool setting styli are fitted with a precision ground tip to ensure high squareness and parallelism.
1.345,00 DKK exkl. moms.

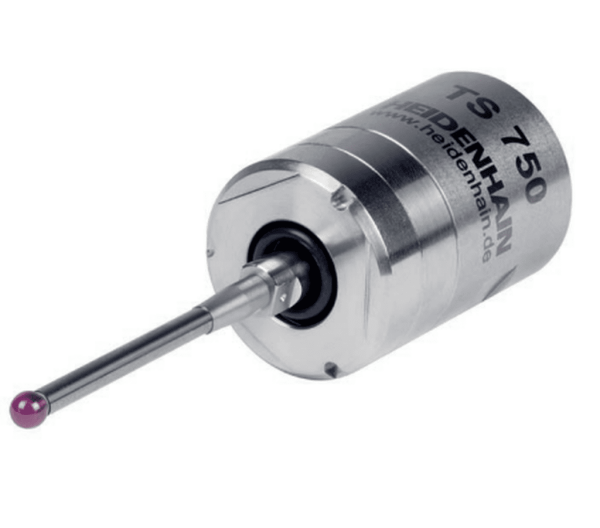

TS 750 .. 7DL02 QE 0.00 .. T434 .. .. 0069 Workpiece touch probe Repeatability: 0.25 µm Output signal: Electrical connection: PCBA contact strip, female, 2-pin Cable type: w/o cable Stylus geometry: T434 L=40 mm, ball Ø 4 mm, shaft Ø 3 mm, without rated break point Axial deflection force: 8.0 N Housing material: Steel, stainless (1.4104)
Kompatibel med:
26.600,00 DKK exkl. moms.

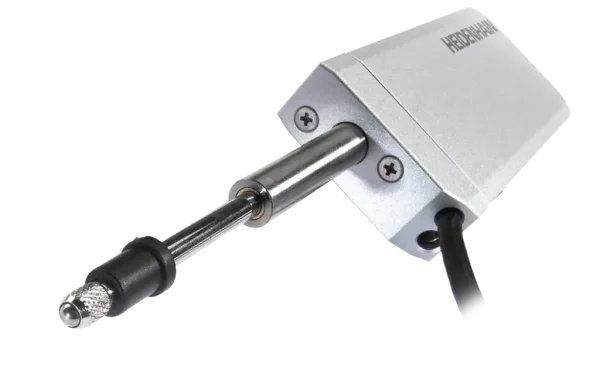

MT 1271 93S15 0V TTLx10 100.00 OT 01 .. 1.50 01 1.7 mm 90 50 0.200 01 Incremental length gauge HEIDENHAIN-METRO Plunger actuation: Extended by spring force Measuring length: 12 mm Type of guide: ball guide Reference mark position: 1.7mm Accuracy grade: 0.2 µm Electrical connection: D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin Pin configuration: D330978 Cable type: PUR Ø 4.5 mm Cable length: 1.50 m Output signal: Square-wave signals, TTL levels with 10-fold interpolation Max. scanning frequency: 100.00 kHz Reference pulse width: 90° Fault detection signal: for disturbance LOW Signal period: 0.200 µm Power supply: 5V+-10% Degree of protection: IP 50 (EN 60529) Operating temperature: +10/+40 °C
9.635,00 DKK exkl. moms.
